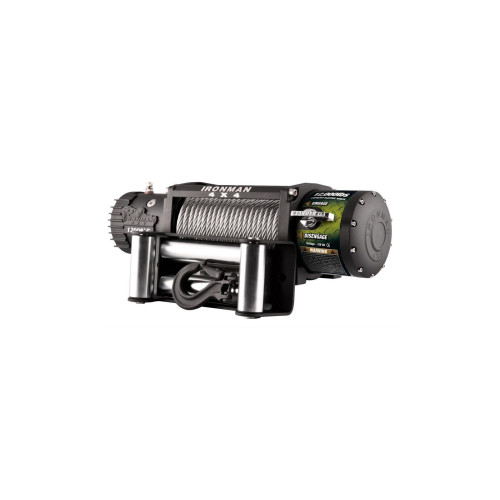

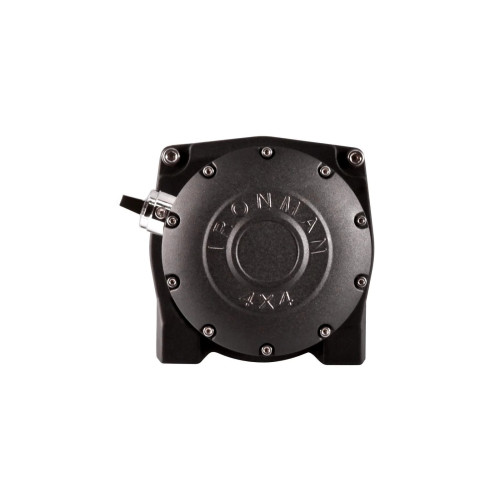

Ironman 4x4 Winch – 12,000 lbs (5,443 kg), Steel Cable, Wireless

Ironman 4x4 12,000 lbs is a heavy-duty low-mount recovery winch engineered for harsh off-road conditions. A sealed 12 V series-wound motor (6.4 hp / 4.5 kW) drives a 3-stage planetary gearbox (265:1) with an automatic in-drum Cam Lock brake for confident, controlled pulls. Supplied with steel cable 28.5 m × 9.5 mm, wired hand control (≈3.5 m) and a wireless remote (up to ~50 m). Standard 10" × 4.5" (254 × 114 mm) bolt pattern.

Prefer synthetic rope? See our Synthetic Rope Winches. For more steel options, browse Steel Cable Winches.

Key Features

• Rated pull: 12,000 lbs (5,443 kg)

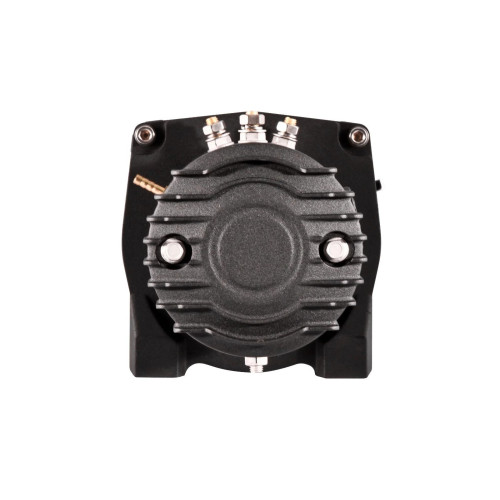

• Motor: 12 V series-wound, sealed, with condensation breather hose (≈6.4 hp / 4.5 kW)
• Geartrain: 3-stage planetary, 265:1
• Brake: Automatic Cam Lock, in-drum
• Controls: Wired controller (~3.5 m) & wireless remote (~50 m)
• Cable: Steel wire, 28.5 m × 9.5 mm (break strength ≈8,160 kg)
• Bolt pattern: 254 × 114 mm (10" × 4.5")
• Approx. size & weight: 562 × 215 × 156 mm • ≈42–44 kg
• Electrics: Sealed contactor/solenoid, heavy-gauge cabling

What’s in the Box

• Ironman 4x4 12,000 lbs winch (pre-spooled steel cable)

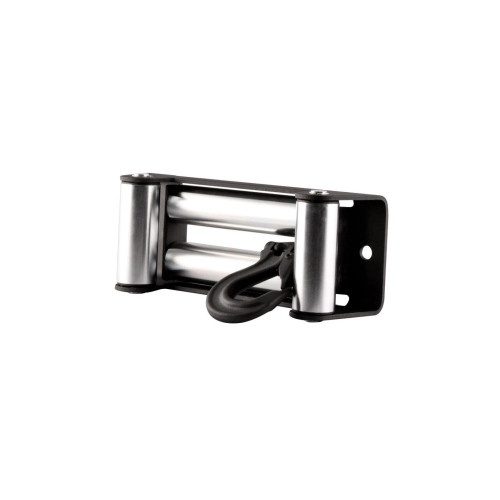

• Roller fairlead & hook
• Wired hand controller & wireless remote

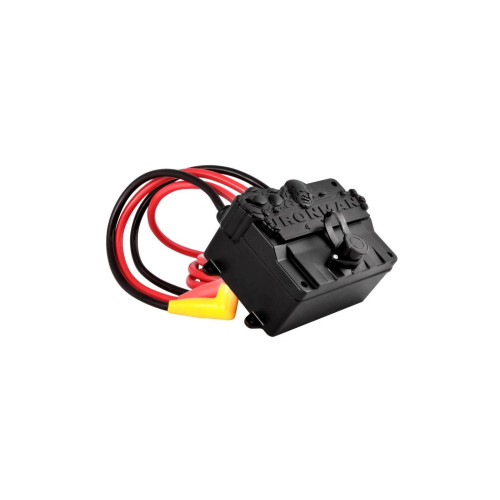

• Control box, power cables & mounting hardware
• User manual

Performance Snapshot

• Line speed: ~8 m/min no load • ~1.8 m/min @ ~5.4 t
• Current draw: ~70 A no load • ~420 A @ ~5.4 t
• Battery: Recommended ≥ ~650 CCA

Installation & Fitment

• Standard low-mount tray pattern: 254 × 114 mm (10" × 4.5")
• Fits most winch-ready bumpers and trays
• Skill level: Intermediate • Typical install: 2–3 hours

Care & Safety

• Rinse and inspect after mud/water crossings; dry the contactor/motor area
• Always use gloves and a winch dampener; keep bystanders clear
• Re-torque hardware and re-spool under light load after the first recovery

Shipping, Warranty & Returns

• Dispatch: 24–48 h on in-stock items • EU delivery: 3–7 working days
• Warranty: Manufacturer-backed (up to 5 years, cable excluded)
• Returns: 14 days (unused, original packaging)
• Support: WhatsApp/Email — we’re here to help

FAQ – Ironman 4x4 12,000 lbs (Steel Cable)

Is the wireless remote included?

Yes. You receive both a wireless remote and a wired hand controller.

Is the winch waterproof?

The motor and solenoid are sealed for off-road use and include a breather hose to mitigate condensation.

What battery spec do you recommend?

A healthy 12 V system with ≈650+ CCA for safe operation under load.

What cable is supplied?

Steel wire rope 28.5 m × 9.5 mm (approx. 8,160 kg breaking strength), with roller fairlead.

What is the mounting bolt pattern?

Standard low-mount 10" × 4.5" (254 × 114 mm) used by most winch trays and bumpers.

Can I convert to synthetic rope later?

Yes. Swap to a hawse fairlead, confirm drum capacity and hardware, and re-spool under tension.

Related

• All Winches
• Winch Accessories
• Recovery (Snatch) Rings
• Tree Protectors & Tow/Kinetic Straps
• Soft Shackles

Conclusion

The Ironman 4x4 12,000 lbs Steel Cable Winch combines sealed reliability, strong braking and both wired & wireless control for demanding recoveries. Order today from OFM4x4 EU for fast European delivery and a full manufacturer's warranty. Need accessories? See Winch Accessories or browse all Winches.
