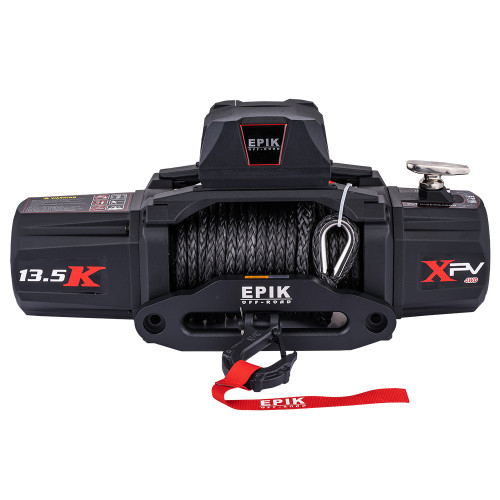

Epik XPV Winch – 13,500 lbs (6,124 kg), Synthetic Rope

Epik XPV 13,500 lbs is a high-torque, low-mount recovery winch for serious 4x4 builds. A sealed 12 V series-wound motor drives a 3-stage planetary gearbox with an automatic load-holding brake for confident, controlled pulls. It comes pre-spooled with 10 mm × 25 m synthetic rope, includes a wired hand control and a wireless remote, and mounts on the standard 10" × 4.5" (254 × 114.3 mm) winch pattern.

Prefer steel cable? Browse Steel Cable Winches. See also Synthetic Rope Winches.

Key Features

• Rated pull: 13,500 lbs (6,124 kg)
• Motor: 12 V DC, sealed series-wound
• Geartrain: 3-stage planetary
• Brake: Automatic, 100% load-holding
• Controls: Wired controller & wireless remote (included)
• Rope: Synthetic, 10 mm × 25 m (pre-spooled)
• Fairlead: Hawse (for synthetic rope)
• Bolt pattern: 254 × 114.3 mm (10" × 4.5")
• Typical size & weight: ≈547 × 160 × 265 mm • ≈27–30 kg
• Electrics: Sealed contactor, heavy-gauge cabling

What’s in the Box

• Epik XPV 13,500 lbs winch (pre-spooled synthetic rope)
• Hawse fairlead & hook
• Wired hand controller & wireless remote
• Control box, power cables & mounting hardware
• User manual

Performance Snapshot

• High line pull with controlled line speed for heavy recovery
• Auto brake holds securely on steep or technical terrain
• Wireless convenience plus wired reliability

Installation & Fitment

• Standard low-mount tray pattern: 254 × 114.3 mm (10" × 4.5")
• Fits most winch-ready bumpers and trays
• Recommended battery: healthy 12 V system, ≈650+ CCA

Care & Safety

• Inspect and clean synthetic rope after heavy or muddy use
• Use gloves and a winch dampener; keep bystanders clear
• Re-torque mounting hardware and re-spool under light load after first use

Shipping, Warranty & Returns

• Dispatch: 24–48 h on in-stock items • EU delivery: 3–7 working days
• Warranty: Manufacturer-backed
• Returns: 14 days (unused, original packaging)
• Support: WhatsApp/Email — we’re here to help

FAQ – Epik XPV 13,500 lbs

Is the wireless remote included?

Yes. The XPV ships with both a wireless remote and a wired hand controller.

What is the mounting bolt pattern?

Standard low-mount 10" × 4.5" (254 × 114.3 mm) used by most winch trays and bumpers.

Is the winch waterproof?

It features sealed electrics and a sealed contactor for off-road use. After water or mud, rinse and inspect.

What rope size is supplied?

Pre-spooled 10 mm × 25 m synthetic rope with a hawse fairlead.

What battery spec do you recommend?

A strong 12 V system with ≈650+ CCA for safe operation under load.

Is this dual-speed?

No — XPV uses a single-speed 3-stage planetary gearbox tuned for torque and control.

Related

• All Winches
• Winch Accessories
• Recovery (Snatch) Rings
• Tree Protectors & Tow/Kinetic Straps
• Soft Shackles

Conclusion

The Epik XPV 13,500 lbs Synthetic Rope Winch delivers dependable torque, sealed reliability and both wired & wireless control in a compact low-mount package. Order today from OFM4x4 EU for fast European delivery and full manufacturer warranty. Need accessories? See Winch Accessories or browse all Winches. Prefer steel cable? Explore Steel Cable Winches.
